AMD RYZEN 5 3600 BUNDLE-16GB RAM

Home
Desktops
BUNDLE
AMD Bundle
AMD RYZEN 5 3600 BUNDLE-16GB RAM

AMD Bundle, BUNDLE

£315.00

Availablity: in stock

2 in stock

Compare

Wishlist

Description
Reviews (0)

AMD RYZEN 5 3600 BUNDLE – 6 CORE – GIGABYTE A320M-S2H MOTHERBOARD – 16GB DDR4 RAM

REQUIRES A DISCRETE GRAPHICS CARD

AMD RYZEN 5 3600 CPU SPECIFICATIONS

CPU Cores

Threads

Base Clock

3.6GHz

Max Boost Clock

Up to 4.2GHz

Total L3 Cache

32MB

Unlocked

Yes

CMOS

7nm FinFET

Package

AM4

PCI Express® Version

PCIe 3.0 x16

Thermal Solution

Wraith Stealth

Default TDP

65W

Max Temps

95°C

*OS Support

Windows 10 – 64-Bit Edition

RHEL x86 64-Bit

Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

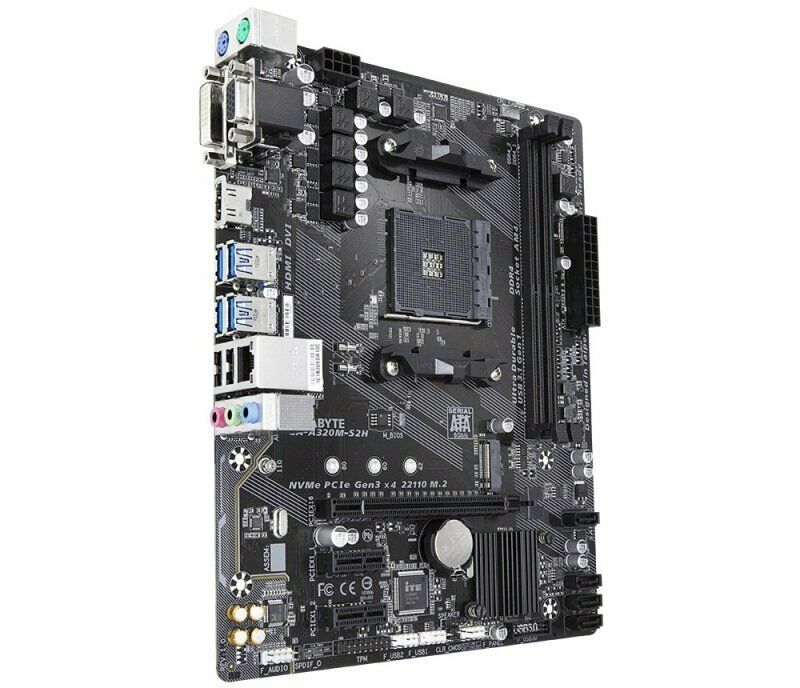

GIGABYTE A320M-S2H MOTHERBOARD SPECIFICATIONS

Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon™ Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors

Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support

High Quality Audio Capacitors and Audio Noise Guard

Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software

Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers

GIGABYTE UEFI BIOS

All New GIGABYTE APP Center, Simple and Easy Use

CPU

AM4 Socket: Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon™ Vega Graphics/ 1st Gen Ryzen with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors

(Please refer “CPU Support List” for more information.)

Chipset

AMD A320

Memory

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

Dual channel memory architecture

Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules

Actual support may vary by CPU.

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Onboard Graphics

Integrated Graphics Processor:

1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz

The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz

Support for HDMI 1.4 version.

Maximum shared memory of 2 GB

Actual support may vary by CPU.

Audio

Realtek ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN

Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

Actual support may vary by CPU.

(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

2 x PCI Express x1 slots

(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)

Actual support may vary by CPU.

Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.

4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 connector.

USB Chipset:

2 x USB 3.1 Gen 1 ports available through the internal USB header

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

CPU:

4 x USB 3.1 Gen 1 ports on the back panel

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only)

1 x speaker header

1 x Clear CMOS jumper

1 x chassis intrusion header

Back Panel Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

4 x USB 3.1 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
